The lightest of all gases, hydrogen is colorless, tasteless and odorless. The particle size of hydrogen is also smallest among gases. Hydrogen compounds formed when hydrogen combines with other elements are the most commonly existing compounds in the world.
Hydrogen gas is flammable with a large explosion range, and also has excellent diffusivity and reducibility to saturate the unsaturated linkage parts of organic compounds. Such characteristics of hydrogen are widely used in fields such as electronics, chemicals, metals, glass, foods, oil and fat.
| 1) Chemical name |
Hydrogen |
| 2) Molecular Formula |
H2 |
| 3) Molecular Weight |
2.016 |
| 4) Sublimation Point |
-252.9°c(1atm) |
| 5) Density |
Gas 0.0899kg/m3 (0 °c, 1atm) / Liquid 0.0710kg / L (-252.9 °c, 1atm)> |
| 6) Critical Temperature |
-240.0 °c |
| 7) Critical Pressure |
12.98atm |
| 8) Critical density |
0.030kg/L |
| 9) Fusion point |
-259.14 °c (1atm) |
| 10) Specific Gravity |
Gas : 0.0695(Air =1.25 °c), 1atm) |
Supply purity
| Location |
Raw materials supplier |
Manufacturing procedure |
Manufacturing capacity (per day) |
Storage capacity |
| Daesan factory |
Lotte Chemical |
Dehydration procedure / naphtha cracking |
63,264 Nm3 |
47 cartridges (As of February 2014) |
* Supply available nationwide via partnership with hydrogen manufacturer operating at Yeocheon Industrial Complex

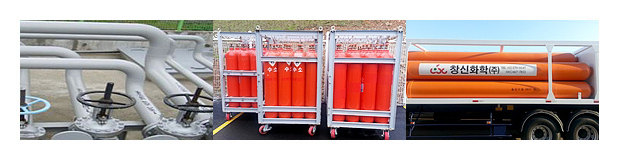

| 1) Pipe Line |
- Supply by constructing underground pipe network (on-site)
|
| 2) Cylinder |
- Supply by delivering containers using cars (when supplying small amounts: 40ℓ, 47ℓ)
|
| 3) Cartridge |
- Supply through cartridges (when supplying large amounts: 40ft, 30ft)
※ Following the amount of use, storage tanks and usage facilities are supported.
|
| Items |
Standard Cartridge |
Jumbo Cartridge |
Remark |
| SIZE
| 9.2m X 2.5m X 3.0m
| 9.2m X 2.5m X 3.5m
| 12.4m X 2.5m X 3.3m
| Scheduled for expansion following client demands |
| Capacity in gas
| 2,600 Nm3
| 3,600 Nm3(30ft)
| 4,100 Nm3(40ft)
|
| Maximum charging pressur
| 200kg/cm2
| 200kg/cm2
| 200kg/cm2
|
| Retention status
| 13
| 4
| 30
|
- - Manufacturing semiconductors, LEDs, optical fibers, polysilicons
- - Manufacturing rocket fuels, automotive fuel cells, liquid fuel- Synthesizing ammonia, hydrochloric acid, methanol
- - Adding hydrogen in petrochemical process
- - Cutting and welding metals with hydrogen flames
- - Metal heat-processing and annealing
- - Processing platinum, quartz
- - Hydrogen fuel for electric vehicles
